Tutorial¶

There is a Jupyter notebook available using [Google Colab](https://colab.research.google.com/drive/1GRCssFs_lGfku1DLvvEowW4fTKUSsLK6?usp=sharing), but we leave this page here to keep old URL links working. New users are advised to refer to the Jupyer notebook.

In this tutorial, we will see how Libinsdb can be used to access the contents of an instance of InstrumentDB. We will make use of the demo site https://insdbdemo.fisica.unimi.it, which is an instance of InstrumentDB containing a reduced set of information related to the ESA Planck spacecraft.

Creating a virtual environnment¶

Typically, the first thing you want to do when working on a Python project is to create a virtual environment for this tutorial so that you do not mess up with your global Python interpreter. You can create a virtual environment using the venv module:

python3 -m venv ./venv

# This works under Linux and a bash-like shell
source ./venv/bin/activate

This command will create a new virtual environment in the venv folder and will activate it. (See the official documentation to learn how to activate the environment under different environments than Linux/bash.)

Installing Libinsdb¶

Once you have activate your virtual environment, you can install Libinsdb using pip:

pip3 install libinsdb

Refer to Installation for further details.

Connecting to the database¶

Once Libinsdb is installed, we can use it in our codes. As stated above, we will use https://insdbdemo.fisica.unimi.it as our instrument database, so let’s connect to it:

from libinsdb import RemoteInsDb

insdb = RemoteInsDb(
    server_address="https://insdbdemo.fisica.unimi.it",
    username="demo",
    password="planckdbdemo",
)

In this case, we are providing the username demo and the password in cleartext through the code. However, this is applicable to the demo site, not in general: you should typically load these information either from the command line or from a parameter file; in the latter case, be sure not to upload this parameter file to any public repository (GitHub, GitLab, BitBucket, etc.), otherwise your credentials for the InstrumentDB website will be compromised!

Accessing information¶

Once you have a working connection to the database, you can run queries using one of the methods InstrumentDatabase.query_entity(), InstrumentDatabase.query_quantity(), InstrumentDatabase.query_format_spec(), InstrumentDatabase.query_release(), InstrumentDatabase.query_data_file(). Each of them returns an object of the appropriate type:

Let’s retrieve information about a data file:

data_file = insdb.query_data_file(
    "/releases/planck2021/LFI/frequency_030_ghz/bandpass"
)

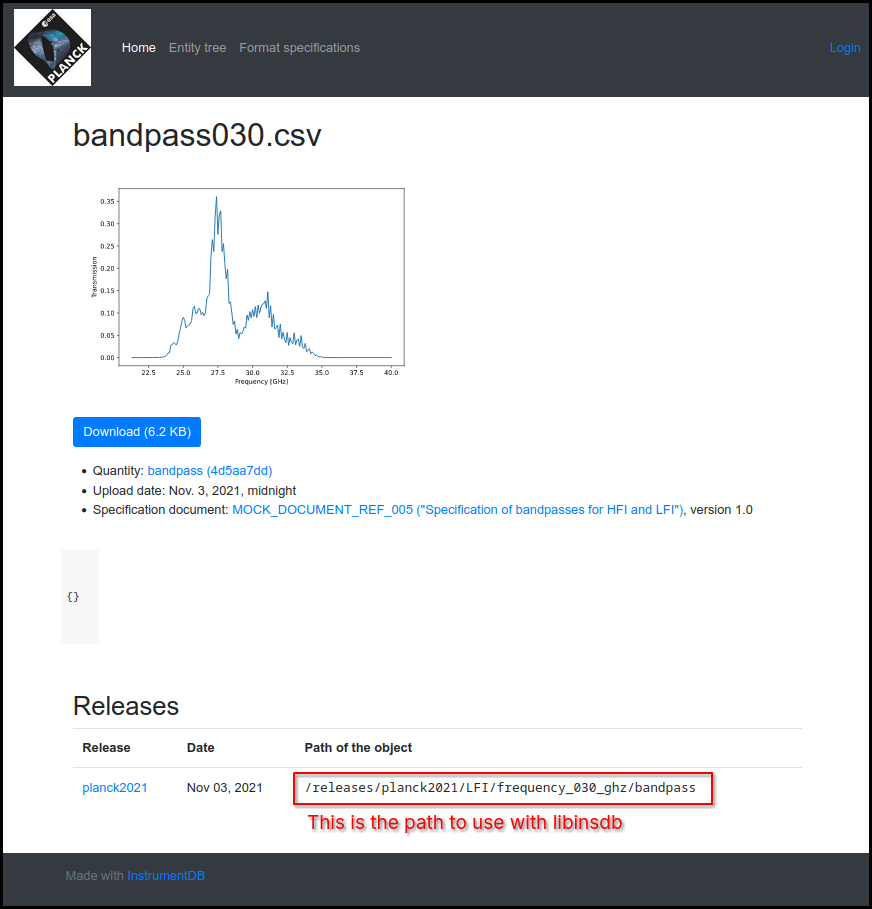

The path we have used here is the one shown at the bottom of the page https://insdbdemo.fisica.unimi.it/browse/data_files/f155cb37-d12e-4645-952f-014086094613/, as shown in this image:

_images/insdb_path_location_border.png — Location of the path to be used in calls to `InstrumentDatabase.query_data_file()`.¶

The method returns a new instance of the DataFile class. If a real file is associated with the class, you can open it using the DataFile.open_data_file() method:

with data_file.open_data_file(insdb) as my_file:
    contents = my_file.read()

Remember that the file is always opened in binary mode; thus, if you know it is a text file you can retrieve a string from contents via the decode method:

decoded_contents = contents.decode("utf-8")

Modifying the content of the database¶

If you are accessing a local copy of the database, only read-only operations are enabled. However, if you instantiate an object of type RemoteInsDb and your user has the proper access rights, then additional methods are available with respect to LocalInsDb:

RemoteInsDb.patch() lets you to change any object in the database, be it a specification document, a data file, a quantity, etc.
RemoteInsDb.delete() lets you to remove any object in the database.
RemoteInsDb.post() lets you to add a new object in the database.

The most used operation is of course to add new objects to the database, which is the reason why RemoteInsDb provides a few additional high-level methods that wrap RemoteInsDb.post():

RemoteInsDb.create_format_spec() creates a new format specification;
RemoteInsDb.create_entity() creates a new entity;
RemoteInsDb.create_quantity() creates a new quantity;
RemoteInsDb.create_data_file() creates a new data file;
RemoteInsDb.create_release() creates a new release.

Each of these high-level functions returns the URL of the new object and enables an easier syntax to specify where the new objects should be created:

# With .post(), you must know the URL of the parent entity and be
# sure to include the relevant keys in the dictionary
response = db.post(
    url="http://localhost/api/quantities/",
    data={
        "name": "my_quantity",
        "format_spec": format_spec_url,
        "parent_entity": parent_entity_url,  # ←
    },
)
quantity_url = response["url"]

# With .create_quantity, you just specify the path
# where to store the quantity
quantity_url = db.create_quantity(
    name="my quantity",
    parent_path="root/sub_entity1/sub_entity2",
    format_spec_url=format_spec_url,
)

These instructions can be combined in a script so that a full tree of entities/quantities can be produced:

connection = RemoteInsDb(
    server_address="http://localhost:8000",
    username="tomasi",
    password="z5i6o2t3o8m3",
)

# The tree structure is the following:
# / root             with quantity "my_quantity" and one data file
#   / sub_root
#

root_entity = connection.create_entity(name="root")
sub_root_entity = connection.create_entity(name="sub_root", parent_path="root")
format_spec_url = connection.create_format_spec(
    document_ref="ref01",
    document_title="Reference document",
    document_file=io.StringIO("Test doc"),
    document_file_name="ref01.txt",
    document_mime_type="text/plain",
    file_mime_type="text/csv",
)
quantity_url = connection.create_quantity(
    name="my_quantity", parent_path="root", format_spec_url=format_spec_url
)

data_file_url = connection.create_data_file(
    quantity="my_quantity",
    parent_path="root",
    data_file_path="/local_storage/my_data_file.csv",
)

release_url = connection.create_release(
    release_tag="rel1.0", data_file_url_list=[data_file_url]
)

A real-world case¶

The website https://insdbdemo.fisica.unimi.it shows a demo of InstrumentDB hosting a reduced instrument model of the ESA Planck spacecraft. The code used to fill the database is available at https://github.com/ziotom78/fill_insdb_with_planck_rimo and can be used as a reference to use Libinsdb in a real-world scenario.
